Tyle-Tye® Wind Lock Nose Hooks

Also known as "Tile Locks or Butt Hooks", Nose Hooks are for use with clay and concrete roofing tiles to all slopes. They provide a locking device for the butt edge of each cover tile. TYLE-TYE® Wind Lock Nose Hooks achieve greater holding power and are used in high wind designated areas. Tyle-Tye® Wind Lock Nose Hooks are compatible with all methods of tile attachment and are recommended for all roof tiles installed at slopes 7:12 or greater. Available in a squared configuration designed to better fit all different roof tile profiles tightly. Manufactured from type 304 series (.090" dia., 2.3mm) Stainless Steel or 11 gauge (.120" dia, 3mm) Electro-galvanized Steel 10 ga. Brass is available by special request.

(For further information, see downloads for Tyle-Tye® Wind Lock Nose Hook specifications.)

roof tile copper and ss nails and screws roof tile nails and screws
Copper and Stainless Steel Roofing Nails
Screws for Roof Tile and Tyle-Tye® Systems

IAPMO ES - Evaluation Report  444

tyle-tye wind lock nose hooks

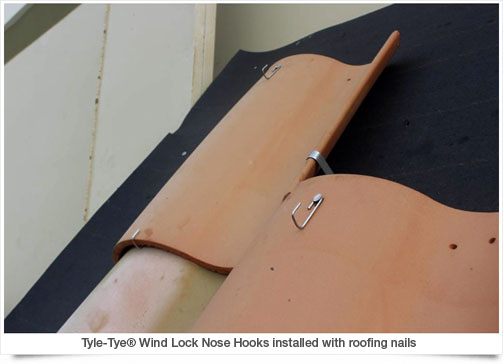

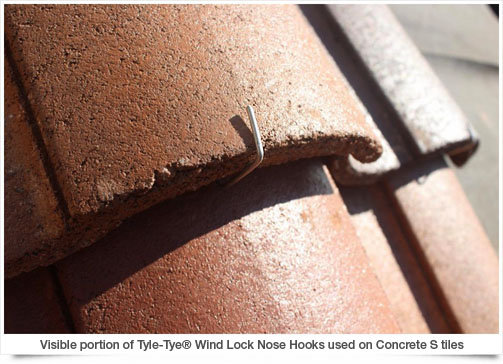

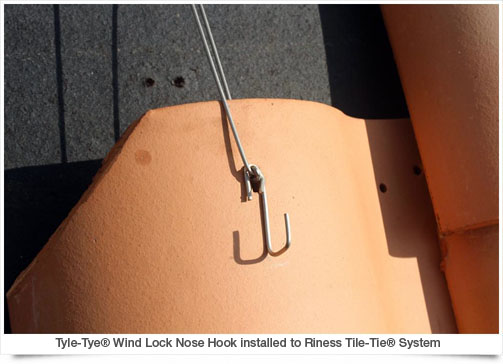

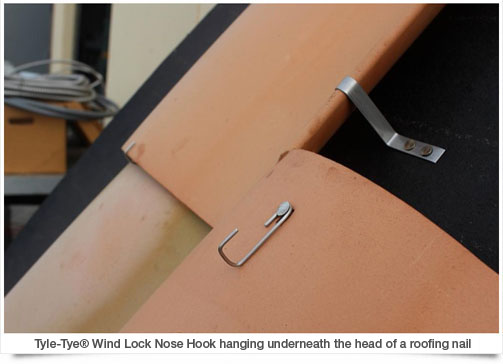

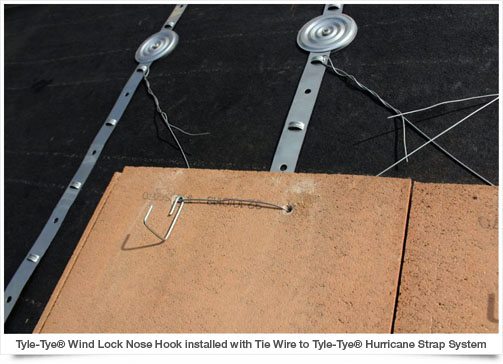

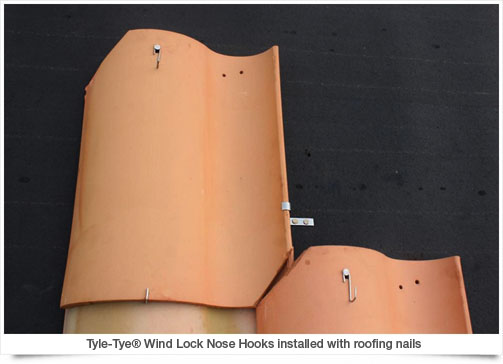

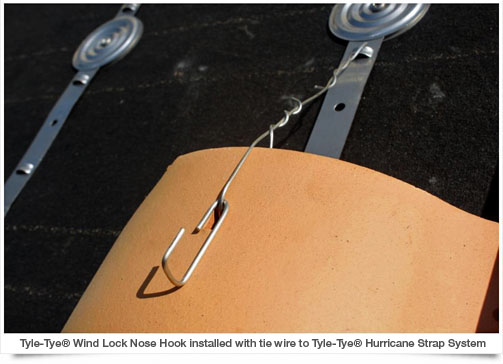

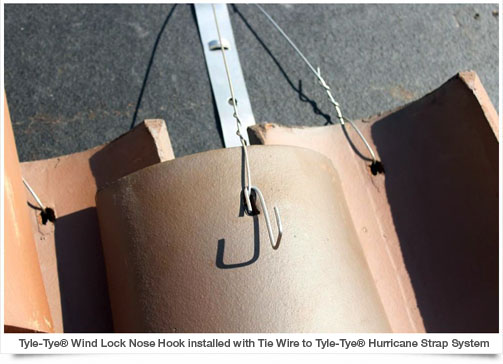

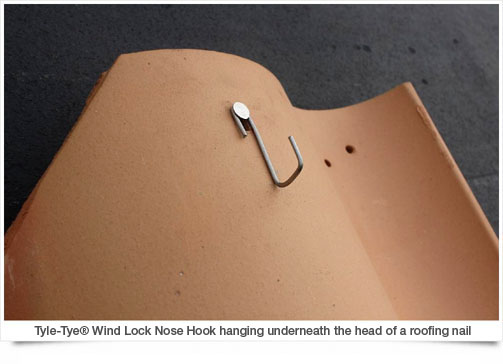

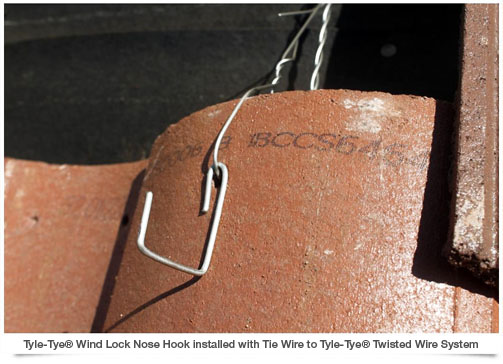

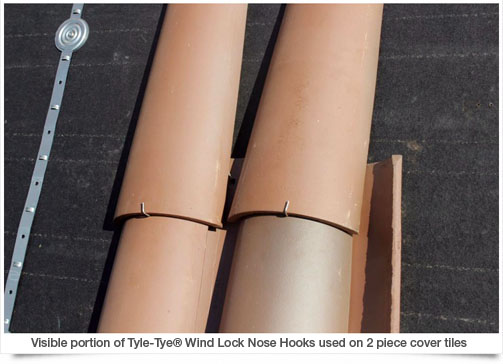

The Tyle-Tye® Wind Lock Nose Hook application images below will automatically zoom in rotation unless a specific thumbnail is hovered.
Call or visit us today for assistance with the Storm-Lock Tyle-Tye® system
or accessory that works best for your clay or concrete tile roof.
